Full Residential Automation · Blair Atholl, Gauteng
Blair Atholl Residence
A landmark Blair Atholl home — generously scaled, architecturally considered, and built to be lived in fully. IHO is wiring every system from the ground up: multi-room audio, distributed video, smart lighting, a private cinema, garden speakers and comprehensive Uniview CCTV, all integrated under Control4.
The Approach
Every room, every system — one point of control
Blair Atholl is a suburb that doesn't compromise, and this home is no exception. The project is currently in cable stage — IHO's team on site running infrastructure while the builders are still finishing, the right sequence for a system of this complexity. Every zone is pre-wired for what it will become: multi-room audio with outdoor garden speakers, distributed 4K video to every screen, and a private cinema whose brand is still being selected to match the room's ambition.
The formal lounge is a particular focus. With a double-volume ceiling it demanded a different approach to background audio — Monitor Audio SF1 in-wall art-work speakers flush-mounted into the walls, invisible until they play, alongside a statement large-format display. On the security side, 10 Uniview 4MP ColorHunter cameras have been positioned to achieve something genuinely rare in residential CCTV: true 360° perimeter coverage with no blind spots. Every elevation, the full driveway approach and all outbuildings sit within frame — and every feed is live on any Control4 touchscreen in the house, or on the app from anywhere in the world.
Work Underway

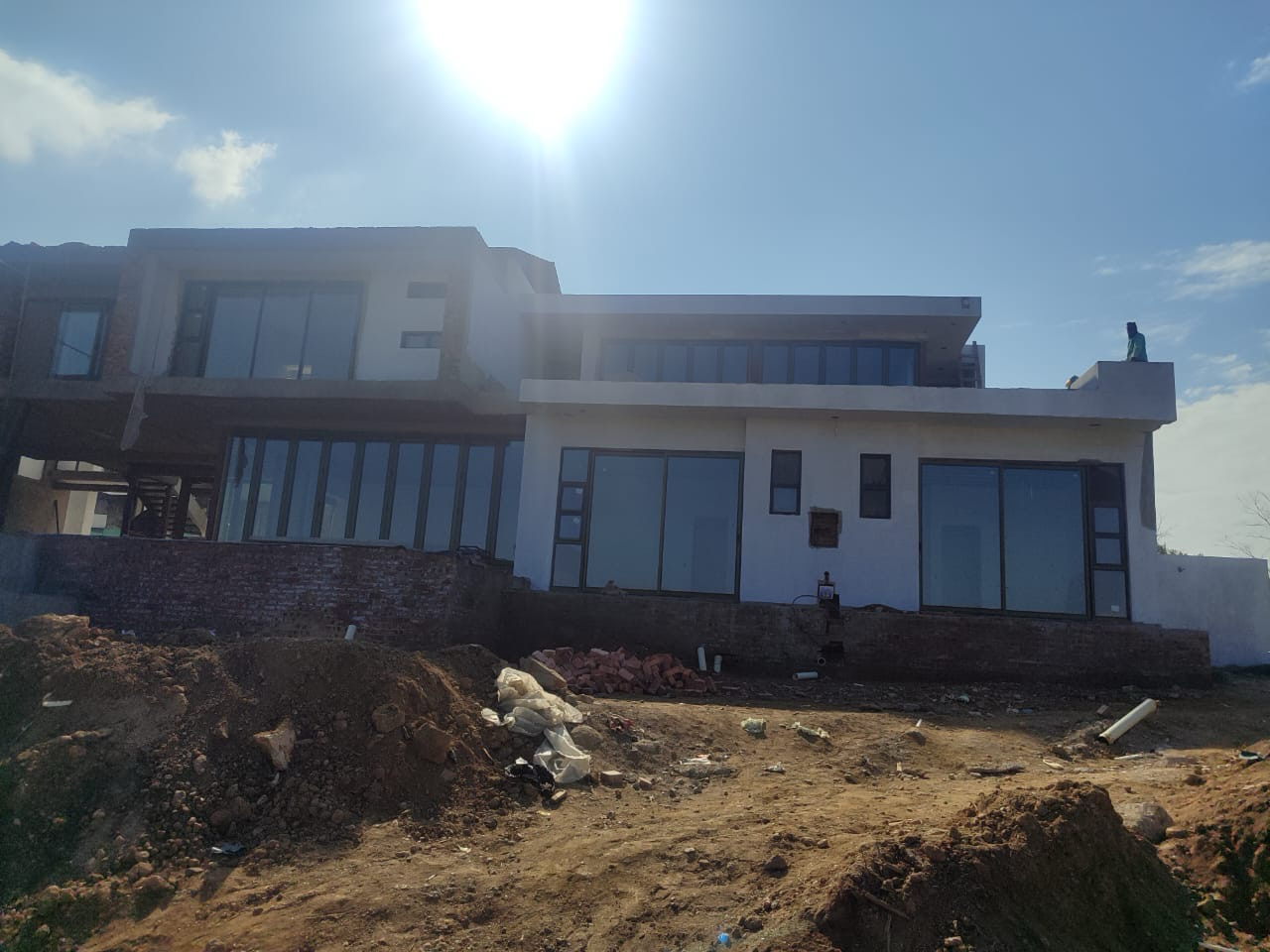

Site photography · Cable stage in progress
Systems at a Glance
Infrastructure
- 42U rack & full Cat6 backbone
- Wirepath 16-gauge 4-core speaker cable
- DSTV dish kit with Smart LNB
Lighting
- Automated smart lighting — whole home, integrated via Control4
Networking
- Alta Labs 10Gb enterprise router
- 2× Grandstream GWN7803P 24-port PoE+ switches
- 10× Grandstream GWN7664E Wi-Fi 6 access points
Control System
- Control4 CORE 5 (primary)
- Control4 CORE 3 (cinema/AV)
- 3× Control4 in-wall touchscreens
- 2× Control4 Halo Touch remotes
- Garage door automation — integrated via Control4
Video Distribution
- HDanywhere MHUB 6×6 HDMI matrix
- 2× Apple TV 4K (128GB)
- 3× Multichoice Explora 3B decoders
Audio Distribution
- Episode Response Series DSP 12-zone amplifier
- 4× Klipsch CS-18-C in-ceiling speakers (pair)
- 2× Monitor Audio SF1 in-wall art speakers — formal lounge
- Episode Terrain 4.1 outdoor garden speaker system
- Sonos Arc Dolby Atmos soundbar
CCTV & Security
- 10× Uniview 4MP ColorHunter fixed bullet cameras
- Uniview 16-channel NVR with local storage
- Control4 C4 Door Chime PoE video doorbell
- Camera positions are engineered to deliver true 360° perimeter coverage — no blind spots, no overlap gaps. Every elevation of the property, all outbuildings and the full driveway approach are within frame. Footage is viewable live from any Control4 touchscreen in the house, and remotely via the Control4 app from anywhere in the world.
Private Cinema
- Brand and specification in selection — watch this space.
Project Progress
Phase 1 · Discovery
CompleteClient consultation, site survey and full system specification completed.
Phase 2 · Design
CompleteSystem architecture, rack design, equipment specification and prewire schedule finalised.
Phase 3 · Installation
In Progress — Cable StageFull cable infrastructure being laid in parallel with building works. Cat6, speaker cable, HDMI and CCTV runs to all zones. Rack build to follow.
Phase 4 · Commissioning
Control4 programming, scene setup, cinema calibration and system integration.
Phase 5 · Handover
Client training, handover documentation and SLA activation.
